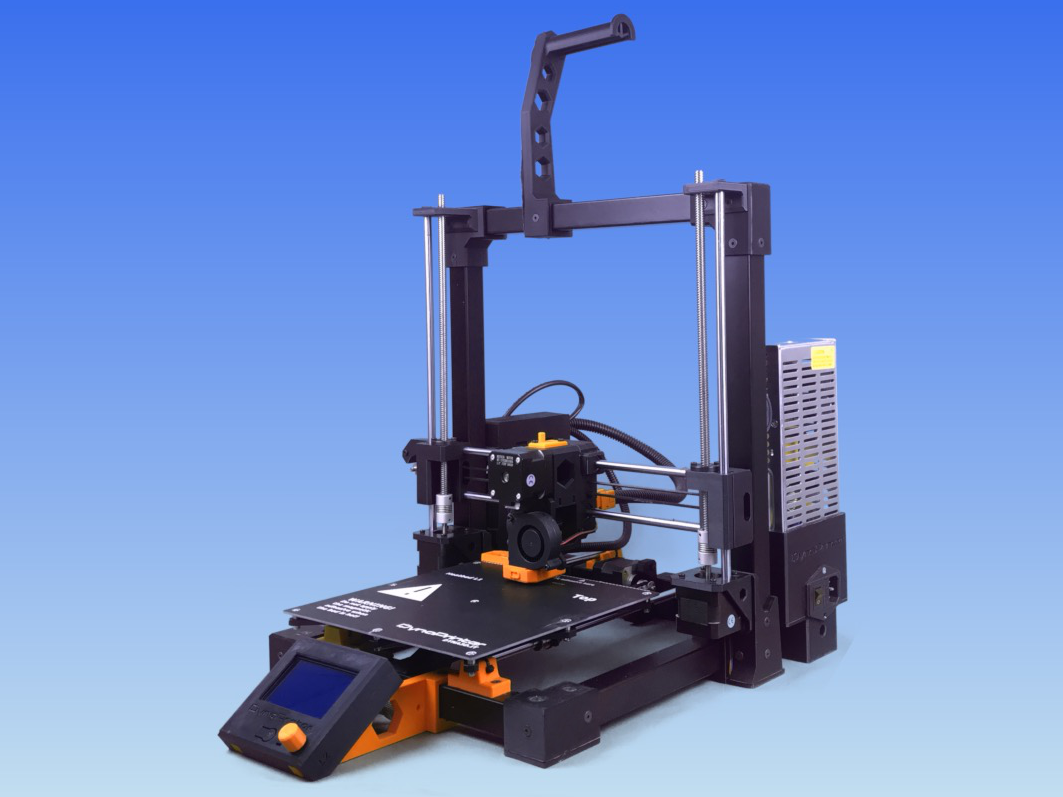

DynaPrinter® – Free to Print
Designed from scratch

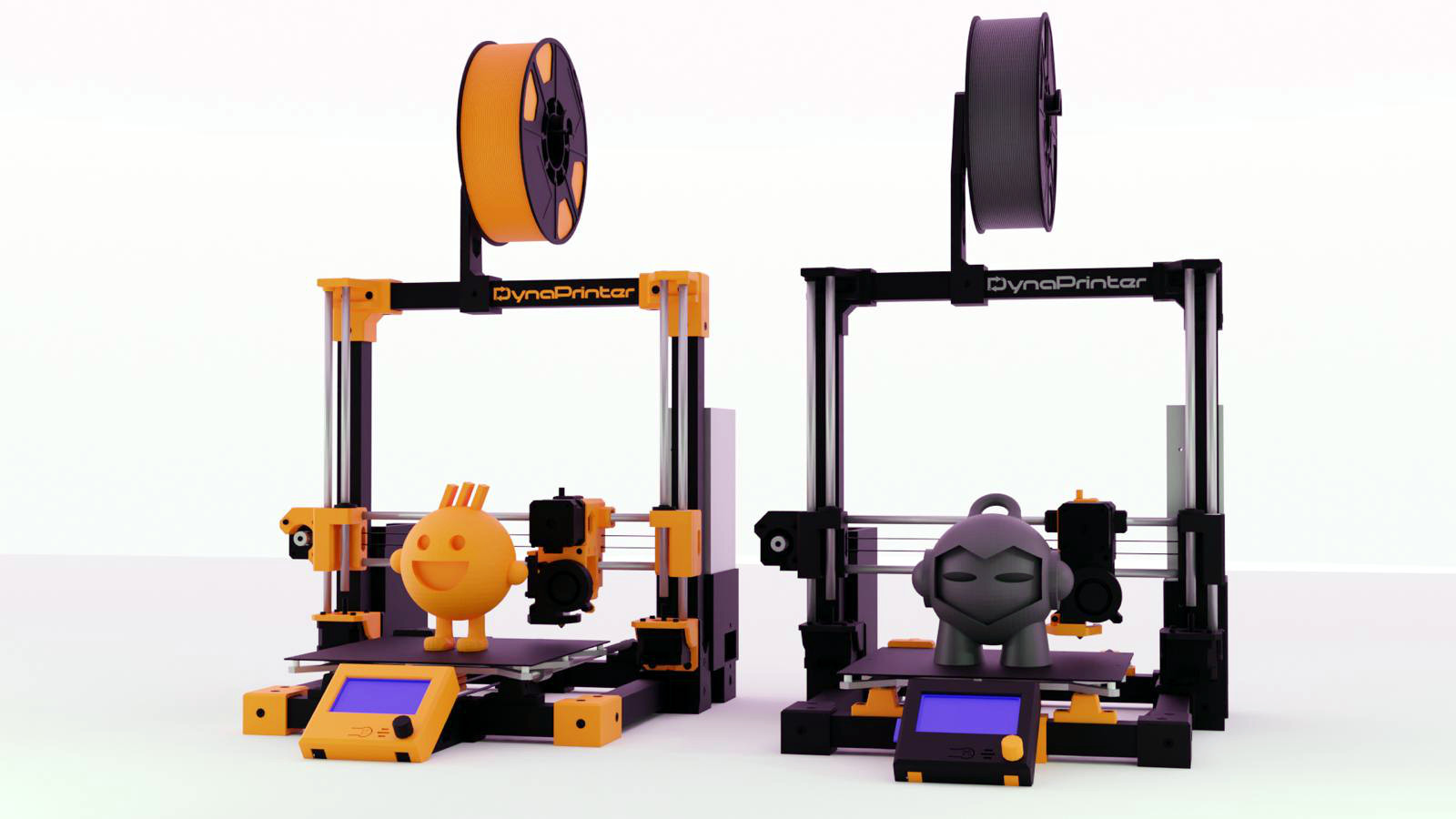

We took the best of open source, added our own and designed the first 3D printer that uses commonly used materials.

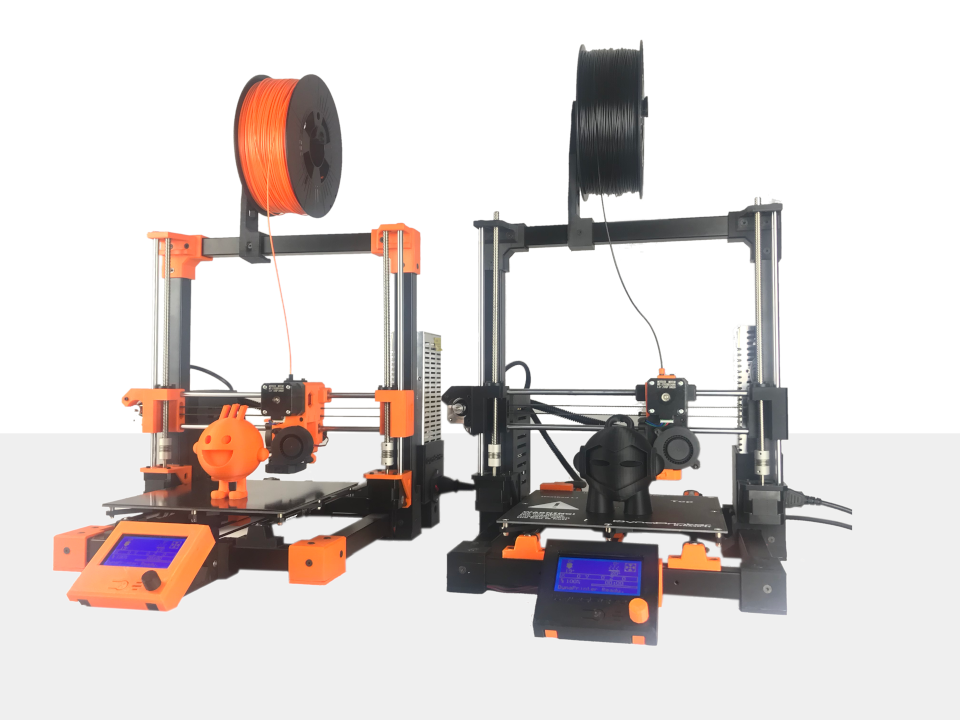

Born to print ABS, but not only
DynaPrinter® was born to print ABS natively that is also used to print itself following the footsteps of the RepRap project. Strength and reliability without compromise.
No plastic is left out, of course. DynaPrinter® is capable to print also PLA, PET, PETG, HIPS, TPU, NYLON and other commercially available plastics.
we save the world
We recycle

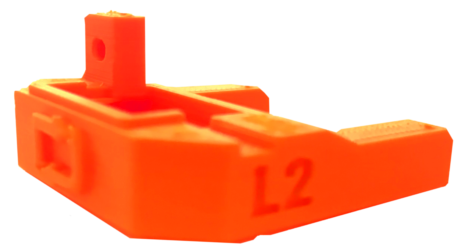

We use recycled plastic to print the parts of our printers and, at the end of their life, the plastics that compose it can be further recycled. Respect for the environment is our primary goal.
Open project
Fully OpenSource
The DynaPrinter® project is completely OpenSource, anyone is able to download the entire project and build or modify their own 3D printer. Hardware, firmware and software are also OpenSource, strictly cross-platform. We care about the freedom of sharing.
If you don't feel ready or don't have time you can always opt to buy a ready-made DynaPrinter®.
*About mixed license MIT / GPL3 / AGPL3
Zero impact
Built with commonly used materials

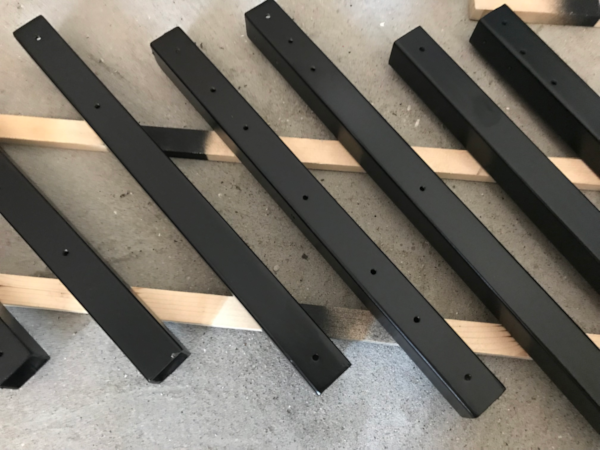

DynaPrinter® is built with commonly used materials that are readily available which implies low component cost and ease of production. Thanks to an interlocking system designed down to the smallest detail, assembly is fun and simple at the same time. Our steel frame is also powder coated to ensure durability over time.

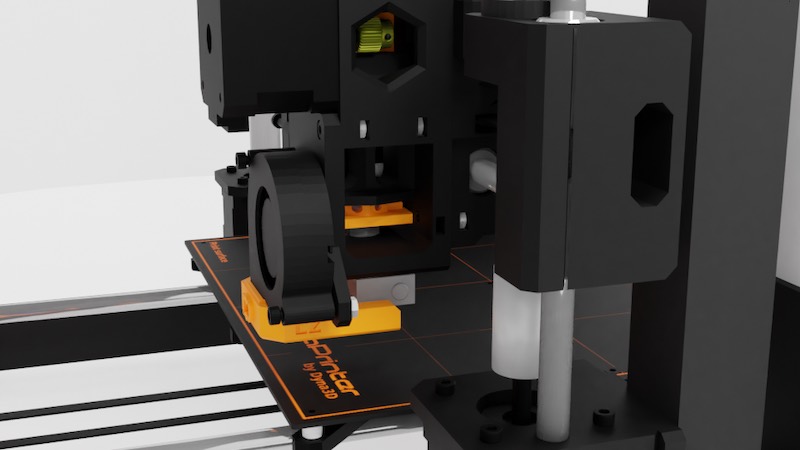

SimplExtruder©
Self-leveling without frills
DynaPrinter® is able to self-calibrate the print bed automatically, natively and without the need for balancing act calibrations, thanks to the piezo electric leveling sensor integrated in the extruder that we have specially invented.
Just launch the print and the system will calibrate the print head and the worktable. Guaranteed precision, without frills, in fact.
We called it SimplExtruder©, with good reason.
Versatility

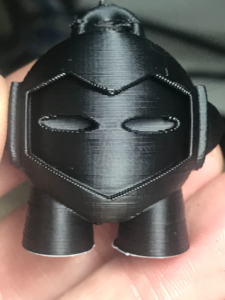

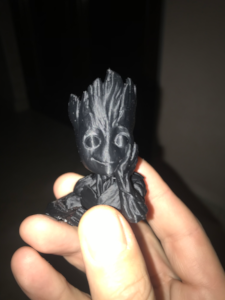

Uncompromising print quality

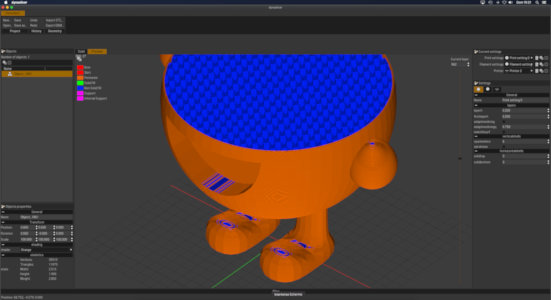

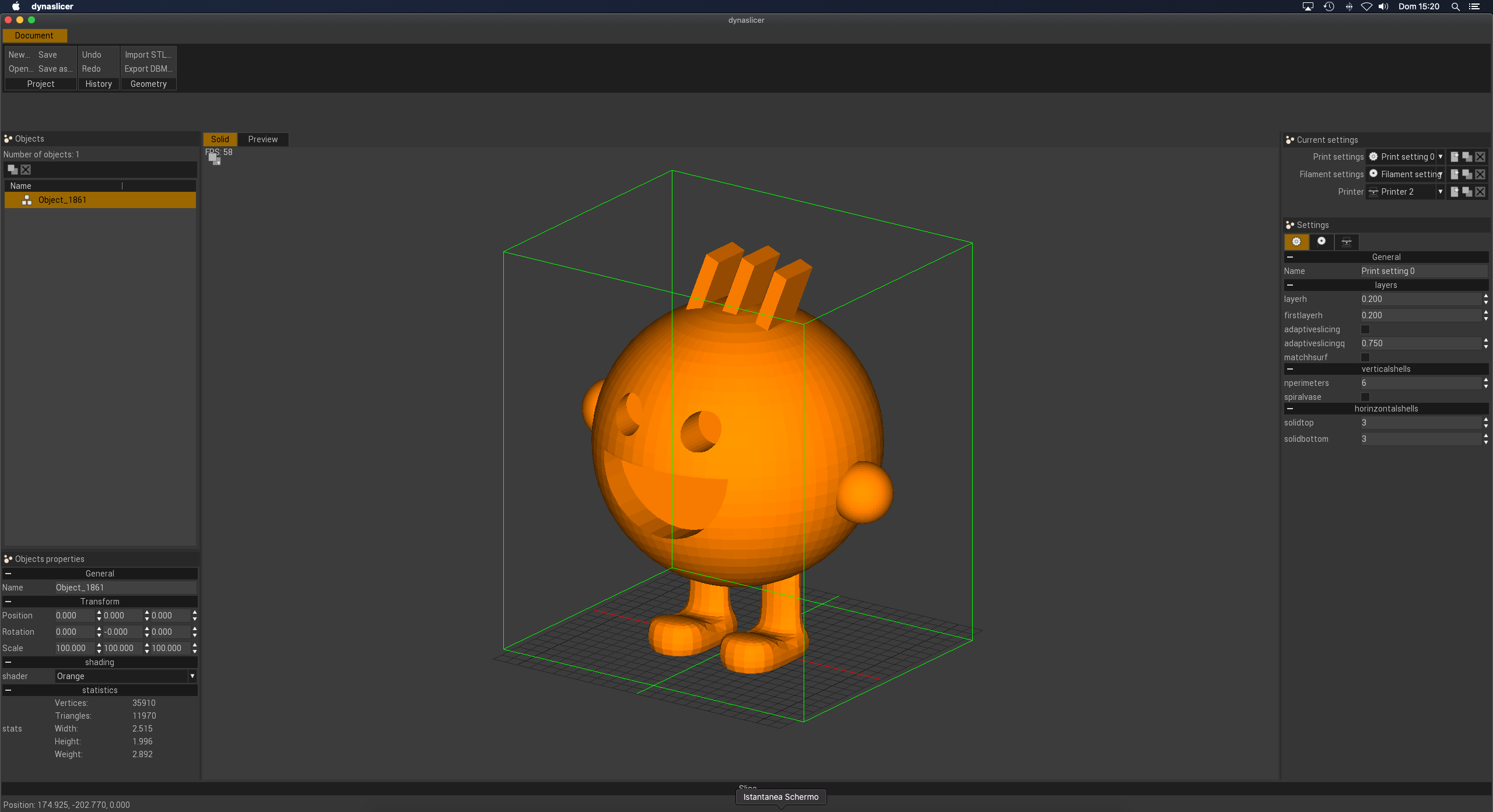

It doesn't matter what kind of plastic you are using to print your designs, DynaFirmware® and DynaSlicer® will always offer you maximum flexibility and reliability thanks to the myriad of pre-set options for various types of material, as well as allowing you the maximum freedom of custom settings.
Choose material's type, slice and print. Easier than that.
Who is behind the project
About us
Also known as 'The master'. The DynaPrinter's creator. Design, hardware, firmware and software are his main tasks. In the free time he like to work also on the DynaPrinter, like a loop.
Also known as the 'First man on the printer'. Helped to check all the DynaPrinter's insidious things. His house didn't get on fire, fortunately. He is also the mind behind the social media management.
Also known as 'Ferdy'. Helped to get out DynaPrinter's children. Thanks to him now there are a new family. He is also the mind behind the public relations and events handling.
Frequently Asked Questions
FAQ
- We buy ready-made filaments made from recycled plastic produced by reputable companies
- We recycle the plastic in-house and create the filaments using our extruders.
Features
Technical details? here they are
Everything you need to know about the DynaPrinter®
Technology: FDM (Fused Deposition Modeling)
Chassis: Made of powder-coated rigid steel and 3D printed ABS components
Minimum layer height: 0.05 mm
Print size: 210 x 210 x 210 mm
Machine dimensions: NN
Weight: About 8 kg
Power supply: AC 100-220V 50-60Hz
Working voltage: 24V DC
Print speed: 20 – 200 mm/s
Filament diameter: 1.75 mm
Nozzle diameter: 0.1-1.0 mm (Di serie 0.4 mm)
Bed leveling: Automatic with high precision
Maximum nozzle temperature: 300°
Maximum plate temperature: 110°
Print surface: Magnetic base, PEI with removable steel plate
Print materials: ABS, PLA, PET, PETG, HIPS, TPU, NYLON (Others unspecified)
Hardware: 8 bit controller (Proprietary, opensource), ultra-silent motor driver (TMC2130) Display: Graphic LCD with SD card reader
Firmware: DynaFirmware (Proprietary, based on Marlin, opensource)
Software: DynaSlicer (Proprietary, opensource) cross-platform: Windows, Linux, MacOS, Haiku
Pre-order
Pre-order your DynaPrinter®
Leave your details to guarantee the introductory price and priority in delivery!
